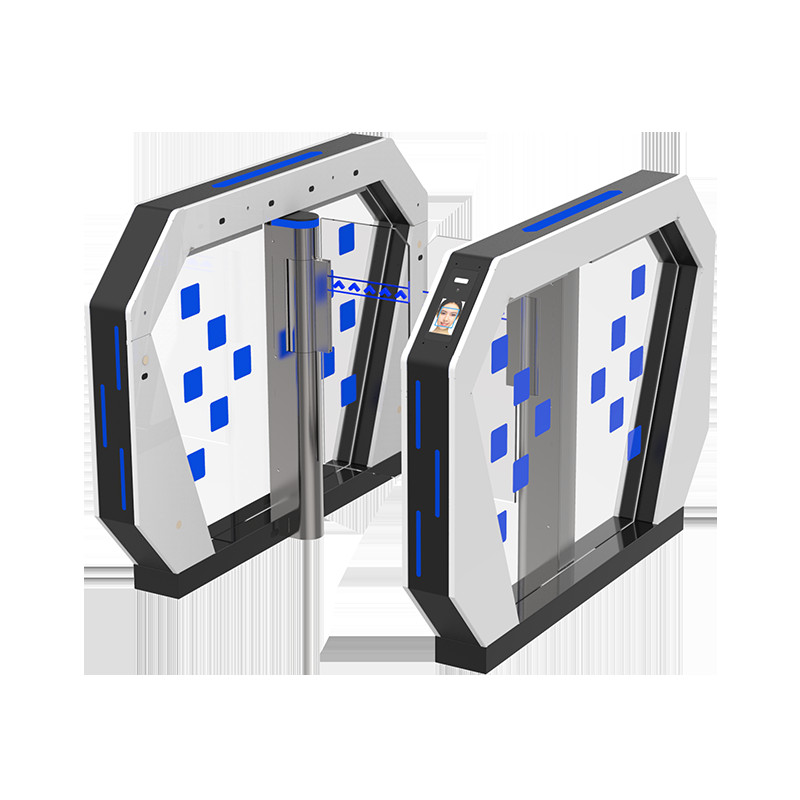

Model NO.	R3486
Main Material	2.0mm cold roller Steel with US powder coating + 10mm Acrylic with Led light bar Filling Panel
Pass Width	600-900mm
Pass Rate	35-50 person/min
Working Voltage	DC 24V
Power	AC 100~240V 50/60HZ
Communication Interface	RS485
Open signal	Passive signals (Relay signals, Dry contact signals)
MCBF	5,000,000 Cycles
Motor	Servo brushless Speed gate motor + Clutch
Infrared Sensor	8 pairs
Environment	-20 ℃ - 60 ℃
Applications	Office buldings, Hotels, Clubs, Governemnt Halls, Banks, Gyms, etc
Package Details	Packed into wooden cases, Single/Double: 1510x330x1210mm, 95kg/114kg

Function Features ·Varied pass mode can be chosen flexibly . ·Standard signal input port, can be connected with most of the access control board, fingerprint device and scanner other equipment. ·The turnstile has automatic reset function, if people swipe the authorized card, but don’t pass through within the settled time, it need to swipe card again for entry. ·Card-reading recording function: single-directional or bi-directional access can be set by the users. ·Automatic opening after emergency fire signal input. ·Physical and infrared double anti pinch technology. ·Anti-tailgating control technology. ·Automatic detection, diagnosis and alarm, sound and light alarm, including trespassing alarm, anti-pinch alarm and anti-tailgating alarm. ·High light LED indicator , displaying passing status. ·Self diagnostic and alarm function for convenient maintenance and use. ·The speed gate will open automatically when power failure.1. Arrow + three-color light interface 2. Double anti-pinch function 3. Memory mode 4. Support 13 traffic modes 5. Sound and light alarm 6. Dry contact / RS485 opening 7. Support fire signal access 8. LCD display 9. Support secondary development 10. With waterproof casing, can also protect PCB board wellHigh quality durable servo motor ·Famous brand Domestic DC servo brushless motor 40:1 100W High safety High security Infrared logic ·4 pairs Normal Button infrared sensors ·24 points Light curtain infrared sensorsBrief introduction The full automatic servo swing gate is a kind of two way speed access control equipment designed for places with high class security requirements. It is easy to integrate with IC access control, ID access control, code reader, fingerprint, face recognition and other identification devices. It realizes the intelligent and efficient management of passage. Special polygon design speed gate with white powder coating and RGB colorful lights, mainly used for office buildings, hotels and clubs, it is quite popular for Korea turnstile market. Applications: Office buldings, Hotels, Clubs, Governemnt Halls, Banks, Gyms, etc·Famous brand Domestic DC brushless motor ·With clutch, support anti-impact function ·Support fire signal interface ·Automatically open the turnstile gate when powered off·Much more flexible, can match with different motors ·Can slove the limited small space problem ·Anodizing process, easy to customize beautiful bright color, anti-corrosion, wear-resistant ·Automatic correction 304 stainless steel sheet, Effective compensation of axial deviation ·The main moving parts adopt the "double" fixed principleOur Colorful Speed gate installed at the entrance and exit of office building in KoreaOur Special Design Swing gate installed at the entrance and exit of office building in Beijing
